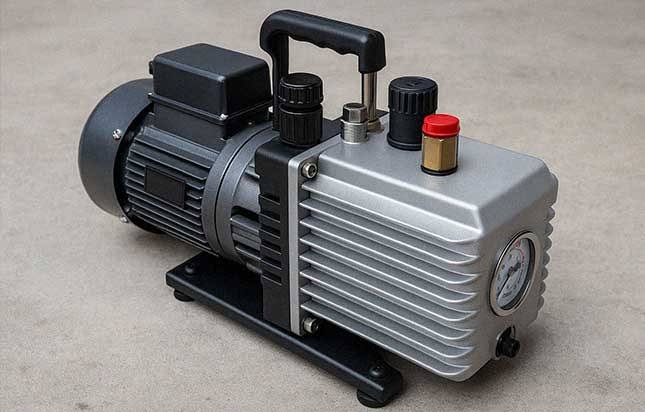

Ask most people how a vacuum pump works, and they’ll say it “sucks” air out of a space. That explanation is intuitive, but it’s wrong — and understanding why changes how you select, size, and troubleshoot a vacuum pump.
A vacuum pump doesn’t pull anything. It removes gas molecules from a sealed volume, and that removal creates the pressure difference that draws more gas toward the inlet. Once you understand that single mechanism, the rest of vacuum technology — from a small workshop pump to an ultra-high-vacuum research system — starts to make sense.
What Is a Vacuum, Really?
A vacuum is simply a space filled with gas at a pressure below normal atmospheric pressure — a defined physical constant worth knowing in every common unit: 101,325 Pa, 1013.25 mbar, 760 torr, 14.696 psi, 29.92 inHg. Every vacuum measurement is essentially a comparison against this baseline; the lower the pressure relative to these numbers, the “deeper” the vacuum.
How Vacuum Pumps Actually Work
A vacuum pump removes gas molecules from a chamber, lowering the molecular density near its inlet. Gas always moves from high pressure to low pressure, so the remaining higher-pressure gas in the chamber drifts toward that lower-density region — not because the pump pulls it, but because that’s how gas naturally behaves. At very low pressures, this becomes even more literal: molecules move randomly, and the pump simply captures whichever ones happen to wander into its inlet.
The Three-Phase Pumping Cycle
Most mechanical vacuum pumps repeat a three-phase cycle: an internal chamber expands and fills with gas from the system, the inlet seals off while the trapped gas is compressed, and the compressed gas is exhausted, typically against atmospheric pressure. Each cycle removes a fixed volume of gas, which is why pump-down starts fast but slows dramatically as pressure drops — the same swept volume simply contains far fewer molecules at lower pressure.
Why a Perfect Vacuum Is Impossible
No pump can create a true, absolute vacuum, because gas keeps finding its way back into the system through outgassing (trapped surface gas releasing over time), permeation (gas seeping through seals and walls), backstreaming (the pump’s own working fluid migrating back in), and virtual leaks (trapped pockets in blind holes or mated surfaces).
The lowest pressure a pump can reach, where these effects balance out against its pumping action, is called its ultimate pressure — one of the two most important specs to check before buying.
The Main Types of Vacuum Pumps
Vacuum pumps fall into three broad categories, each suited to a different depth of vacuum.
Positive-Displacement Pumps
These trap, compress, and expel gas mechanically, covering rough to medium vacuum. Rotary vane pumps use a rotor with sliding vanes to sweep gas through the pump — single-stage units reach around 10⁻² mbar, while two-stage units go deeper, into the 10⁻³–10⁻⁴ mbar range. Liquid ring pumps use a rotating ring of water to seal and compress gas, ideal for wet or dirty processes though limited to roughly 30–50 mbar. Diaphragm and scroll pumps run oil-free, popular in labs and cleanrooms, typically reaching 1–2 mbar and 10⁻² mbar respectively. Claw and screw pumps are also dry-running and widely used in semiconductor and industrial processes. Roots (lobe) blowers move huge volumes of gas quickly but can’t exhaust to atmosphere alone — they’re always paired with a backing pump.
Momentum-Transfer Pumps
These don’t trap gas in a chamber; instead, they impart velocity to individual molecules. Turbomolecular pumps spin blades at extremely high speed to knock gas molecules toward the exhaust, reaching 10⁻⁷ to 10⁻¹⁰ mbar. Diffusion pumps use jets of heated, vaporized oil to drive gas molecules along, reaching similarly deep vacuum levels with no moving parts. Both require a separate backing pump, since they only work once the system is already at reduced pressure.
Entrapment Pumps
Rather than expelling gas, these capture it permanently until serviced. Cryopumps freeze gas onto extremely cold surfaces, getter pumps chemically bind reactive gases to a metal surface, and ion pumps ionize gas and bury it in a titanium cathode. These reach the deepest vacuum levels available — often below 10⁻¹¹ mbar — and are used in specialized research and semiconductor applications.
Oil-Sealed vs. Dry Pumps
Oil seals internal clearances, lubricates moving parts, and carries away heat — which is why oil-sealed rotary vane pumps reach deeper vacuum than many dry alternatives. Dry pumps skip the oil entirely, avoiding any risk of process contamination — critical in food production, pharmaceuticals, and semiconductor manufacturing — at the cost of typically higher ultimate pressure and greater upfront expense.
The Two Specs That Actually Matter
Every vacuum pump is defined by two independent specs, and confusing them is one of the most common buying mistakes: pumping speed (CFM or m³/h — how fast the pump moves gas) and ultimate pressure (torr, mbar, or microns — how deep a vacuum it can reach). A pump with high CFM doesn’t necessarily reach a deep vacuum, and a pump that reaches an extremely deep vacuum doesn’t necessarily move much gas per minute. Matching both specs to your application is essential.
Common Applications
Vacuum pumps show up in more places than most people realize: food packaging (removing oxygen to extend shelf life), CNC workholding (using atmospheric pressure to clamp thin materials), HVAC and refrigeration (evacuating systems before charging refrigerant), material handling (powering suction cups and lifters), laboratories and medical equipment (filtration, aspiration, freeze-drying), and semiconductor manufacturing (deposition, etching, and other high-vacuum processes).
Myths Worth Retiring
“Vacuum pumps suck.” They don’t — they remove molecules; pressure differences and molecular motion do the rest. “More horsepower means deeper vacuum.” Not true — horsepower affects pumping speed, not the ultimate pressure a pump can reach, which is determined by its design. “Flow rate and vacuum level are the same thing.” They’re not — a pump can have impressive CFM and a shallow ultimate pressure, or the reverse. Always check both specs.
Conclusion
Vacuum pumps work by removing gas molecules, not by generating suction — a distinction that explains everything from pump-down times to why a bigger motor won’t necessarily get you a deeper vacuum. Whether you’re evacuating an HVAC line or specifying equipment for a semiconductor cleanroom, understanding the pump type, its ultimate pressure, and its pumping speed is the foundation of choosing the right tool for the job.
